Summary0001093: [SWAN]DVT Test[Acoustic-MIC]
DescriptionAcoustic test(MIC)
TagsNo tags attached.
Attach Tags

Relationships

related to 0001212 closed(ALTech) SH Son [SWAN] DVT test item

Users monitoring this issue

User List (ALTech) Juyoung Park , (ALTech) Lonnie Kim , (ALTech) SH Son , (ALTech) Sophie Lee , (ALTech) SY Yoon , (ALTech) Wooshin Kang , (ALTech) Younkwang Jung , (HW) Sean Chiang , (HW) Tom Lee , (PM) Henry Chiou , (RD) Fu-chiang Young , (RD) Jim Chen

Activities

(HW) Tom Lee

2021-01-28 10:21

developer   ~0005974

Hi, SH

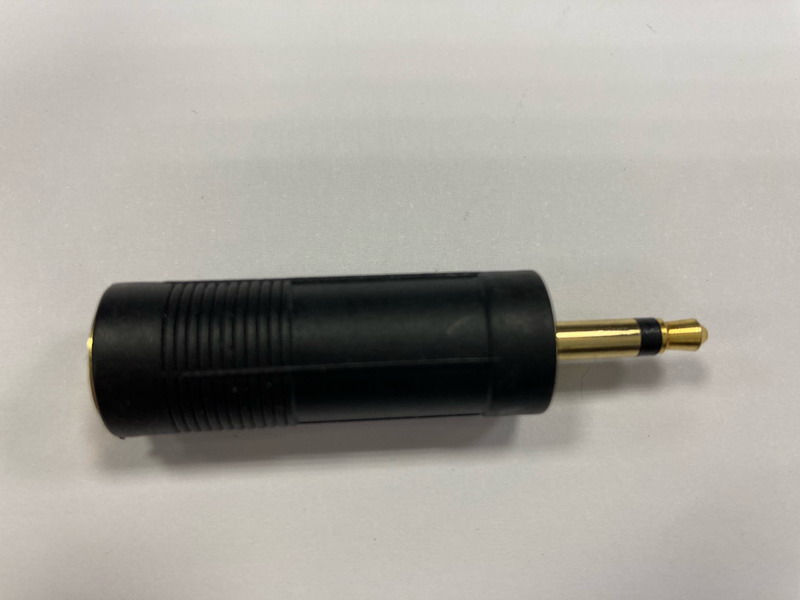

Attached are the 3.5mm Jack drawing and 3.5mm plug dimension for you reference.

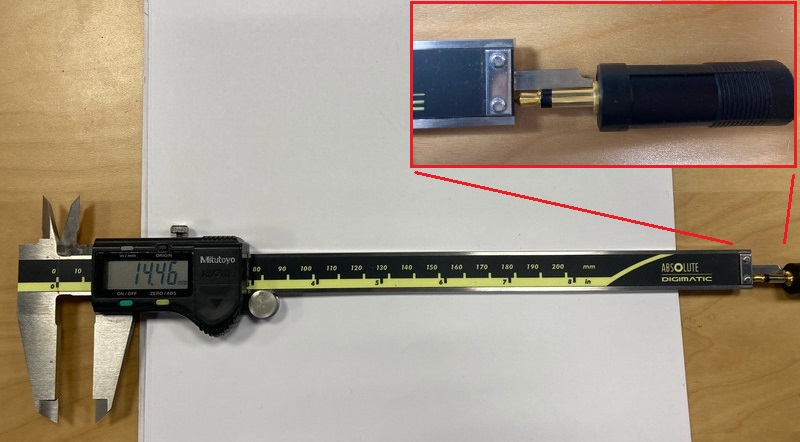

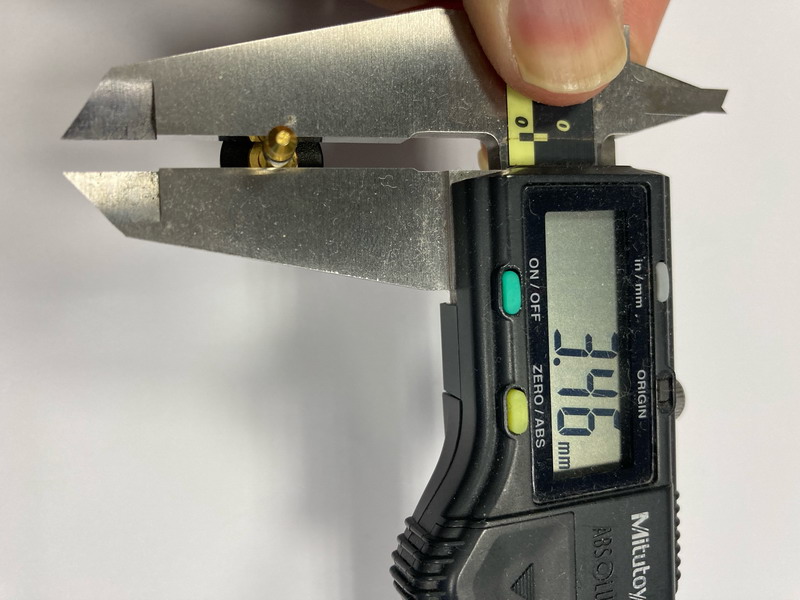

Because I don't have 3.5mm plug drawing, so I measure dimension by vernier caliper.

Thanks !
2SJ2296-000111 SPEC_B1.pdf (342,989 bytes)
2SJ2296-000111_CUS_C1.pdf (124,445 bytes)
3.5mm plug_1.jpg (58,430 bytes)
3.5mm plug_1.jpg (58,430 bytes)
3.5mm plug_2.jpg (99,881 bytes)
3.5mm plug_2.jpg (99,881 bytes)
3.5mm plug_3.jpg (110,752 bytes)
3.5mm plug_3.jpg (110,752 bytes)

(HW) Sean Chiang

2021-03-15 22:52

developer   ~0006374

Hi SH and Lonnie,

The acoustic report has been upload to 0000952: 0006295 by Fu-Chiang
Please check it and let us know your thought.
I think the current rubber pad doesn't has good isolation performance for each microphones.
Need ALT to review it soon and work with Inkel to correct it, and then make new sample for further testing.

Regards,
Sean

(HW) Sean Chiang

2022-01-06 12:39

developer   ~0009224

Dear ALT team,

I would like to close these open issues on mantis since they are related to the EVT/DVT HW test items, releability, certificaions etc., and should have passed with good result.
So, You can reopen it if you found any issues and would like to raise it again for further discussion.

Thanks,
Regards,
Sean
